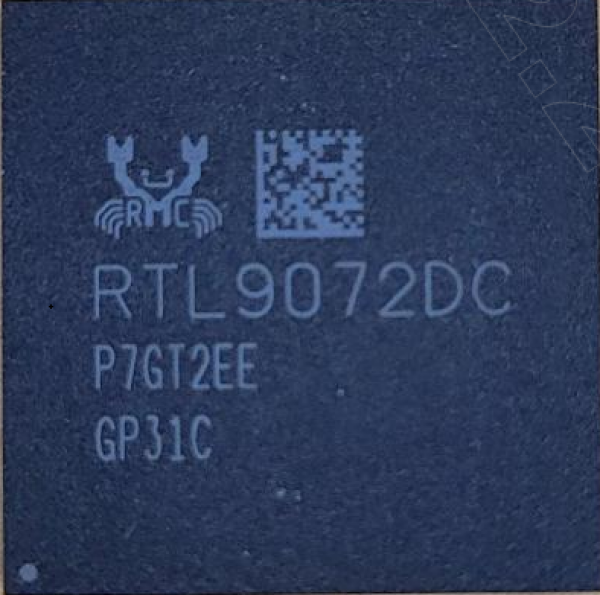

The RTL907xD is an AEC-Q100 qualified automotive Ethernet switch controller with integrated 100/1000BASE-T1 PHY transceivers, Giga-byte Ethernet PHY transceivers, RGMII/RMII/MII, SERDES interface support SGMII/HSGMII/USXGMII/KR/XFI, and PCI-E 3.0 1-lane or 2-lane interfaces. The Ethernet traffic can smoothly forward between all ports at wire speed.
The RTL907xD supports general Layer-2 switching, Layer-3 routing, and Access Control List (TCAM) up to 512 rules for packet forwarding. It also supports Audio Video Bridging (AVB) and Time Sensitive Network (TSN) includes 802.1AS-Rev, 802.1Qav, 802.1Qbv, 802.1Qat, 802.1Qci, 802.1Qcc, 802.1Qcr, and 802.1CB for advanced traffic control.
PSA Certified Level 2 RoT Component Details
| Certificate Number: | 0632793520894-16765 |
| Date of Issue: | 27/07/2026 |
| Test Lab: | DEKRA |
| Certification Holder: | Realtek |
| Certified Product: | RTL907xD |
| Hardware Version: | C |
| Certification Type: | PSA Certified Level 2 RoT Component v1.0 |
| Developer Type: | PSA Certified – Chip |
