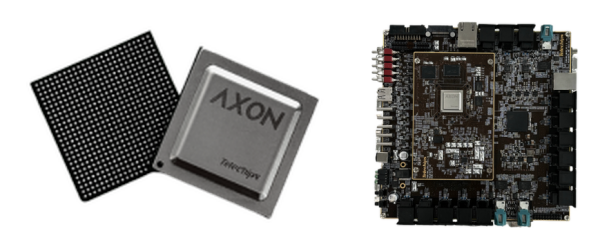

AXON (TCN100X) is Telechips' automotive in-vehicle network processor targeting central and zonal gateway use cases
It integrates multi-core Cortex-A65AE application cores, multi-core Cortex-M7 real-time cores, and an on-die HSM (Hardware Security Module) sub-system.
The HSM sub-system acts as the Root of Trust and hosts the PSA Certified API implementations (Crypto + ITS).
The Cortex-M7 real-time cores act as PSA NSPE clients that consume those APIs through an on-die transport.
PSA Certified API Details
| RTOS: | - |
| Firmware: | SPE (Root of Trust): Telechips HSM firmware (TF-M derivative) running on-die HSM RISC-V core and NSPE: Telechips AUTOSAR BSP on Cortex-M7, hosting the psa-arch-tests |
| API Test Suite Version: | v24.03_API1.6_CRYPTO_1.1.0 (commit b3ab8b59) |
| Hardware: | Telechips TCN1000 (SEC 14 nm), Board: TCN100 EVB |
| API/Crypto Coverage: | crypto_hash, crypto_mac, crypto_cipher, crypto_derivation, crypto_aead, crypto_asym_crypt, crypto_asym_sign, crypto_agreement, crypto_rng, psa_its |
